Assumptions

  • You have a CF deployed with at least 2 diego cells
  • You have two proxy apps pushed and named appA and appB (the fewer apps you have deployed the better)

Review

This track of stories is going to go through the steps (listed below) that were covered in the dataflow overview. The steps and diagram will be at the top of each story in case you need to orient yourself. Higher quality diagram here.

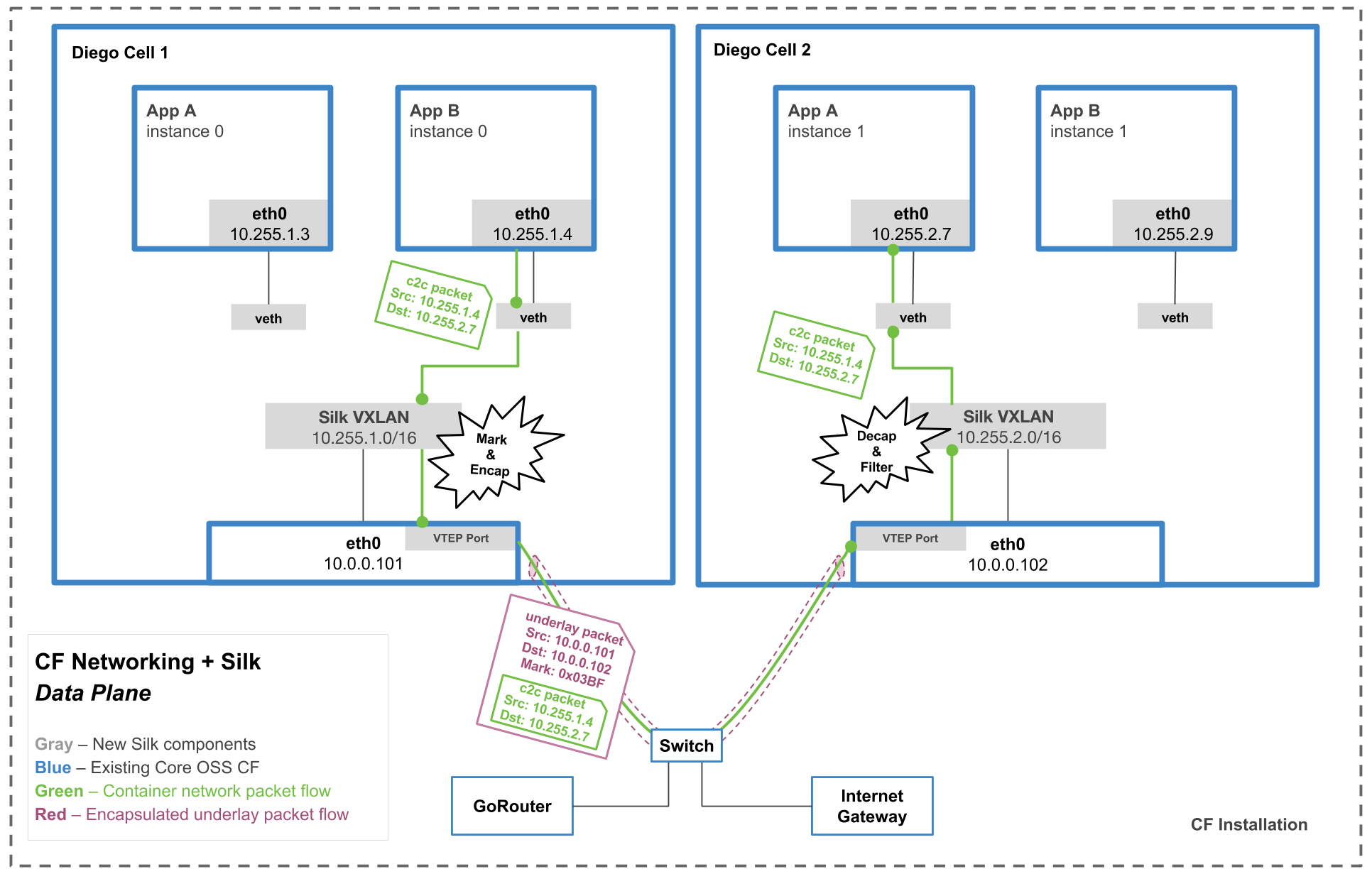

c2c traffic flow

  1. AppB (on Diego Cell 1) makes a request to AppA’s overlay IP address (on Diego Cell 2). This packet is called the overlay packet (aka the c2c packet).
  2. The packet exits the app container through the veth interface.
  3. The overlay packet is marked with a …mark… that is unique to the source app.
  4. Because the packet is an overlay packet, it is sent to the silk-vtep interface on the Diego Cell. This interface is a VXLAN interface.
  5. The overlay packet is encapsulated inside of an underlay packet. This underlay packet is addressed to the underlay IP of the Diego Cell where the destination app is located (appA in this case).
  6. The underlay packet exits the cell.
  7. The packet then travels over the physical underlay network to the correct Diego Cell.
  8. The packet arrives to the correct Diego Cell
  9. The underlay packet is decapsulated. Now it’s just the overlay packet again.
  10. Iptables rules check that appA is allowed to talk to appB based on the mark on the overlay packet. <——- CURRENT STORY
  11. If traffic is allowed, the overlay network directs the traffic to the correct place.

What

The diagram above shows the container to container networking traffic flow between two apps on different Diego Cells. But what about when the apps are on the same Diego Cell?

In this story, you are going to do some investigation to figure out what the container to container traffic flow is for apps on the same Diego Cell.

❓ Questions

  • What chain (INPUT, OUTPUT, or FORWARD) are the container networking policy iptables rules appended to?
  • Does overlay traffic between apps on different Diego Cells hit this chain?
  • Does overlay traffic between apps on the same Diego Cell hit this chain?
  • Does overlay traffic between apps on the same Diego Cell get encapsulated?
  • What steps listed in the review section apply for apps on the same Diego Cell?

Expected Result

At the end of this story, you should know the traffic flow between two apps on the same Diego Cell.
