Assumptions

  • You have an CF deployed with at least 2 diego cells
  • You have two proxy apps pushed and named appA and appB (the fewer apps you have deployed the better)

Review

This track of stories is going to go through the steps (listed below) that were covered in the dataflow overview. The steps and diagram will be at the top of each story in case you need to orient yourself. Higher quality diagram here.

c2c traffic flow

  1. AppB (on Diego Cell 1) makes a request to AppA’s overlay IP address (on Diego Cell 2). This packet is called the overlay packet (aka the c2c packet).
  2. The packet exits the app container through the veth interface.
  3. The overlay packet is marked with a …mark… that is unique to the source app. <——- CURRENT STORY
  4. Because the packet is an overlay packet, it is sent to the silk-vtep interface on the Diego Cell. This interface is a VXLAN interface.
  5. The overlay packet is encapsulated inside of an underlay packet. This underlay packet is addressed to underlay IP of the Diego Cell where the destination app is located (appA in this case).
  6. The underlay packet exits the cell.
  7. The packet then travels over the physical underlay network to the correct Diego Cell.
  8. The packet arrives to the correct Diego Cell
  9. The underlay packet is decapsulated. Now it’s just the overlay packet again.
  10. Iptables rules check that appA is allowed to talk to appB based on the mark on the overlay packet.
  11. If traffic is allowed, the overlay network directs the traffic to the correct place.

What

In the last story we found out that packets leave the app container over the veth pair interface. In this story we are going to look at how overlay packets are marked.

First off, why are packets marked?

Packets are marked with a mark that is unique to the source app. Each instance of the source app has its packets marked with the same ID. If there is a c2c policy, then on the destination Diego Cell there are iptables rules that allow traffic with a certain mark to certain destinations. The policies look like the following diagram. Using one mark per source app, decreases the number of iptables rules needed per c2c policy, especially when there are large number of app instances.

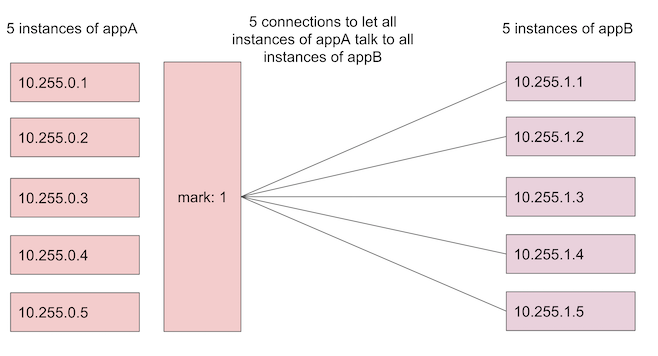

markful networking policy diagram

If packets weren’t marked we could use the overlay IP as a unique identifier. However, this would create the need for many more iptables rules, especially when there are a large number of app instances.

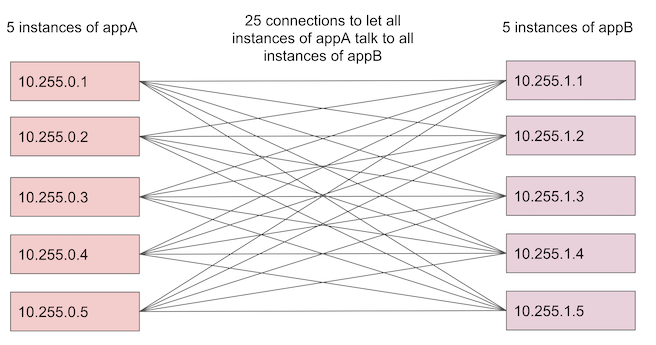

markless networking policy diagram

You will learn more about how the c2c policies check the mark in later stories (hint: it uses iptables). For now, let’s focus on how traffic is marked (hint: it uses iptables).

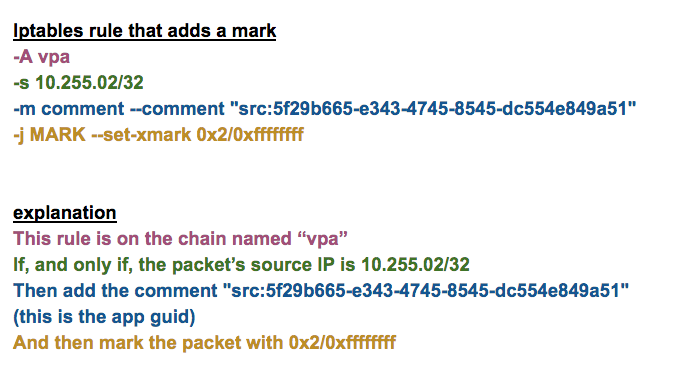

Here is an example iptables rule that sets a mark. setmark iptables rule example

In this story we are going to find the applicable set-xmark rules for our app and we’re going to find out where that mark value comes from.

How

📝 Find set-xmark rules

  1. Delete all network policies. This time you are going to use the networking API because former policies from deleted apps can linger in the database, but not show up in the CLI.
    cf curl /networking/v1/external/policies > /tmp/policies.json
cf curl -X POST /networking/v1/external/policies/delete -d @/tmp/policies.json
# check that they are all deleted
cf curl /networking/v1/external/policies
  2. Ssh onto the Diego Cell where appA is located and become root.
  3. Look for the iptables rules that set marks.
    iptables -S | grep set-xmark

    Nothing! This is because there are no policies. A mark is only allocated to an app when that app is used in a container to container (c2c) networking policy.

  4. In a different terminal, add a c2c policy from appA to appB (cf add-network-policy --help)
  5. Back on the Diego Cell, look again for iptables rules that set marks
    iptables -S | grep set-xmark

You should see something that looks like the colorful example above. Copy and paste it here.

# PASTE THE SET-XMARK RULE HERE

The source IP is the overlay IP for your app. The comment is the app guid for appA. And the mark is…well… where does the mark come from?

When a c2c policy is created, the policy server determines if the app has a mark already or not. If the app doesn’t have a mark yet, it creates one. Let’s look at all these marks. The marks are an internal implementation of how c2c policies work, so they are not exposed on the external API (the API the CLI uses). But there is also an internal policy server API. The internal policy server API is the API that other CF components, like the vxlan-policy-agent, use.

📝 Look at marks via internal policy server API

  1. You will need certs to call this API, those certs are located on the Diego Cell at /var/vcap/jobs/vxlan-policy-agent/config/certs
  2. Follow the docs for how to list all of the c2c policies (the actual policy server url may vary from the docs. Check policy_server_url in /var/vcap/jobs/vxlan-policy-agent/config/vxlan-policy-agent.json to get the right one). You should see something like the following. The tag for appA should match the mark you saw in the iptables rule.
    {
  "total_policies": 1,
  "policies": [
 {
   "source": {
     "id": "90ff1b89-a69d-4c77-b1bd-415ae09833ed",  <------- AppA guid
     "tag": "0004"                                  <------- AppA mark, should match what you saw in the iptables rule above
   },
   "destination": {
     "id": "0babce4f-6739-4fc8-8f74-01f11179bfe5",  <------- AppB guid
     "tag": "0005",                                 <------- AppB mark
     "protocol": "tcp",
     "ports": {
       "start": 8080,
       "end": 8080
     }
   }
 }
  ]
}

❓ Questions

  • Hey! AppB has a mark too. Why?
  • Marks on packets are limited to 16 bits. How many unique marks is this? Does this give you scaling concerns for c2c networking?

Expected Outcome

The data about the tag for the source app from the internal policy server API should match the mark in the iptables rule.

Look at the Code

In the vxlan policy agent (vpa), there is a component called the planner. The planner gets information from the internal policy server API about all of the c2c policies. The planner turns this policy information into proposed iptables rules.

Here the VPA goes through all of the source apps and creates mark rules for them

Here is the implementation of NewMarkSetRule
